Analysis and treatment of shell-making defects in deep-cavity castings

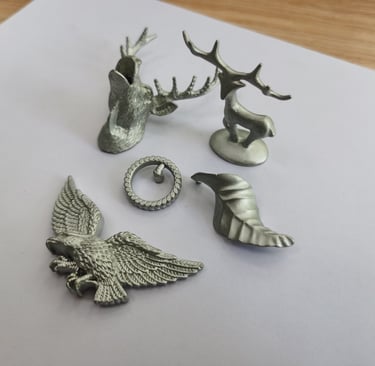

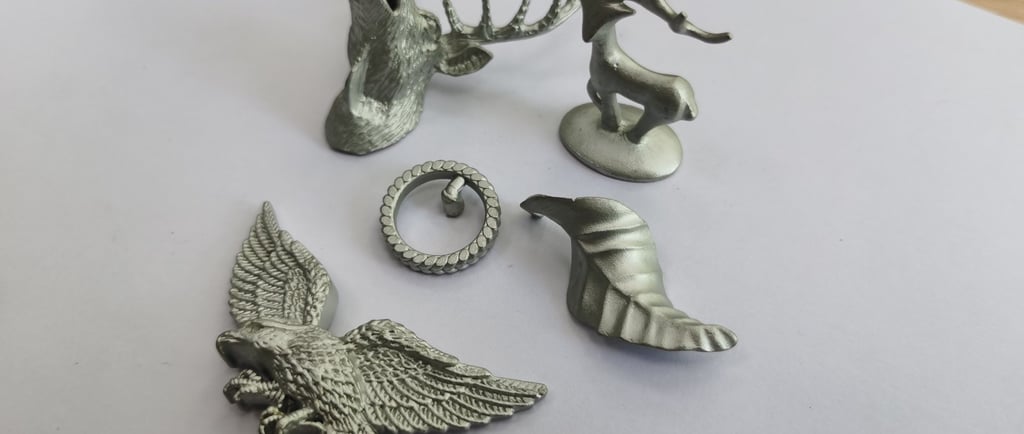

Can a Shell Made with Only 300-Mesh Quartz Flour/Silica Sol Slurry and 60-Mesh Quartz Sand for All Three Layers Be Used for Investment Casting of Slingshot-Sized Aluminum Parts?

Restating the Query: Essentially, the question is: Can a shell built using only a slurry composed of 300-mesh quartz flour mixed with silica sol binder, stuccoed only with 60-mesh quartz sand, applied consistently for three consecutive layers (acting as both face coat, intermediate coat, and backup coat), be used to successfully cast aluminum parts roughly the size of a slingshot?

Before directly answering this question, it's essential to understand the typical structure of an investment casting shell.

I. Standard Investment Casting Shell Structure

A robust investment casting shell is not monolithic; it is a carefully engineered laminate structure composed of distinct functional layers:

1. Face Coat (Primary Coat): This is the innermost layer, in direct contact with the molten metal. Its primary functions are:

   • Providing an extremely smooth surface finish to the casting.

   • Maintaining dimensional accuracy of fine details.

   • Chemically resisting the molten metal (especially important for reactive metals like aluminum and titanium alloys).

   • Often applied as a single layer, but for demanding parts (high surface finish, complex details, reactive alloys), two face coats might be used.

   • Typical Materials: Very fine refractory powders (e.g., Zircon flour -325 mesh, Alumina flour, Fused Silica flour ~350 mesh) in a binder slurry. Stucco is usually fine-grain (e.g., Zircon sand 80-120 mesh, Alumina, Fused Silica).

2. Intermediate Coat(s) (Transition/Secondary Coat): Positioned between the face coat and backup coats. Its critical roles are:

   • Preventing "Sand Burn-Through" (Sand Penetration Defects): This is paramount. If the stucco particle size jumps too drastically from the fine face coat stucco to a much coarser backup stucco, the sharp, angular edges of the coarse backup sand particles can physically penetrate ("stab through") the relatively thin and potentially less strong dried face coat layers during stucco application. This creates pathways for metal penetration during pouring, resulting in surface defects colloquially known as "cucumber spines" or "sand burn" – rough, spike-like protrusions on the casting surface.

   • Providing a gradual transition in particle size and permeability.

   • Contributing additional strength.

   • Typical Materials: Slurry often uses a medium-fine refractory flour (e.g., Molochite/Chamotte flour ~200-270 mesh). Stucco is medium-coarse (e.g., Quartz sand 40-70 mesh, Molochite 30-60 mesh).

3. Backup Coat(s) (Reinforcement Coat(s)): These are the outermost layers. Their purpose is purely structural:

   • Providing the bulk of the shell's strength and rigidity to withstand the hydrostatic pressure of the molten metal and handling stresses.

   • Contributing to overall permeability for dewaxing and gas escape.

   • The number of backup coats is dictated by the size, weight, and geometry of the casting. Larger, heavier, or more complex parts require more backup layers.

   • Typical Materials: Slurry typically uses a coarser flour (often the same as the intermediate coat). Stucco is coarse (e.g., Quartz sand 16-30 mesh, Molochite 16-30 mesh, coarse Alumino-Silicate sands). Particle size and coarseness increase progressively outward.

Why Layering is Essential: The "Cucumber Spine" Example:
A concrete example underscores the necessity of the intermediate layer. In our foundry, we encountered severe "cucumber spine" defects on a specific part. The shell structure was:

• Face Coat: Zircon flour (~325 mesh) + Silica Sol slurry, stuccoed with 80-120 mesh Zircon sand.

• Intermediate/Backup: We attempted to go directly to a coarse backup coat: Slurry was Molochite flour (~270 mesh) + Silica Sol, stuccoed with 16-30 mesh Quartz sand.
  The result was disastrous – castings covered in sand penetration defects. The root cause was identified as the excessive particle size difference between the face coat stucco (100 mesh avg.) and the backup stucco (23 mesh avg.). The highly angular nature of the quartz sand particles exacerbated the problem, providing sharp points capable of piercing the face coat. The absence of a proper intermediate layer with a medium-sized stucco (like 40-70 mesh) was the critical flaw. Adding a suitable intermediate coat resolved the issue.

Layer Count Minimum:
Therefore, a minimum viable shell structure typically requires four-and-a-half dips:

1. Face Coat Slurry + Face Stucco (e.g., Zircon)

2. Intermediate Coat Slurry + Intermediate Stucco (e.g., 40-70 mesh Quartz)

3. Backup Coat 1 Slurry + Backup Stucco (e.g., 16-30 mesh Quartz)

4. Backup Coat 2 Slurry + Backup Stucco (e.g., 16-30 mesh Quartz)

5. Sealer/Reinforcement Dip (Slurry only, no stucco)
   Higher layer counts are common internationally and for parts demanding tighter dimensional tolerances or greater strength. Literature cites examples like printer components with fine pins requiring shells exceeding ten layers.

II. Raw Materials Used in Shell Manufacturing

The choice of materials has evolved significantly:

1. Binders:

   • Silica Sol: Has become the predominant binder in the industry due to its excellent strength, good colloidality for slurry stability, environmental advantages (water-based), and ability to produce high-integrity shells. It's the standard for quality castings.

   • Waterglass (Sodium Silicate): Still used by some foundries, primarily for lower-cost, less demanding applications (e.g., carbon steel, some non-ferrous). It requires hardening agents (like ammonium salts) and generally produces shells with lower strength and dimensional stability than silica sol. Its use is declining for precision work.

   • Ethyl Silicate: Once common, especially for high-temperature alloys, its use has drastically declined due to cost, handling hazards (flammability, toxicity), and the effectiveness of modern silica sols. It's largely obsolete for mainstream applications.

2. Refractory Powders (Flours):

   • Face Coat: High-purity, fine, chemically stable refractories are essential.

     • Zircon (ZrSiO4): The most common choice globally. Offers excellent refractoriness, low thermal expansion, high thermal conductivity (promotes directional solidification), and exceptional resistance to most molten metals, including aluminum. Typical mesh: 325 (~44 microns).

     • Alumina (Al2O3 - Fused or Calcined): Very high refractoriness and chemical inertness. Used for demanding applications (superalloys, titanium) or where zircon reactivity might be a concern. More expensive than zircon. Typical mesh: 325.

     • Fused Silica (SiO2 - Amorphous): Low thermal expansion minimizes cracking risk. Good for intricate shapes and aluminum. Reactivity with molten aluminum is a potential concern (see Section III). Typical mesh: 350 (~45 microns).

     • Molochite/Chamotte (Calcined Kaolin - Al2O3·2SiO2): Rarely used for face coats in quality foundries due to lower purity and potential reactivity. Some foundries might use it for very simple aluminum parts to save cost, but it's not recommended. Mesh ~325 if used.

   • Intermediate & Backup Coats: Cost-effectiveness becomes more important. Alumino-silicate materials dominate.

     • Molochite/Chamotte Flour: The standard choice. Offers good refractory properties, good slurry rheology, and is economical. Typical mesh: 200-270 (~75-53 microns).

     • Other: Some foundries might use specific local sands or recycled materials, but consistency is key.

3. Refractory Stucco (Grains):

   • Face Coat: Must match the powder's chemical resistance and provide a fine surface texture.

     • Zircon Sand: Most common (80-120 mesh / 100 mesh avg. ~150 microns).

     • Alumina Grit: For high-end or reactive alloy applications.

     • Fused Silica Sand: Used, especially with fused silica slurries. Angularity and reactivity are considerations.

     • Mullite Sand: Less common, offers good thermal stability.

   • Intermediate Coat: Bridges the particle size gap.

     • Quartz Sand (Silica Sand): Very common (40-70 mesh avg. ~300 microns). Angularity is a factor for penetration risk.

     • Molochite/Chamotte Grit: (30-60 mesh avg. ~400 microns). Often preferred over angular quartz.

   • Backup Coats: Focus on strength, permeability, and cost.

     • Quartz Sand: Widely used (16-30 mesh avg. ~700 microns). Angular.

     • Molochite/Chamotte Grit: (16-30 mesh). Rounded particles offer better packing and potentially less penetration risk than angular quartz.

     • Coarse Alumino-Silicate Sands: Various proprietary blends exist. Some foundries standardize on an intermediate grit size like 35 mesh or 22 mesh for multiple backup layers.

Progressive Refractory Strategy:
A core principle in shell building is the progressive coarsening of refractories moving outward from the face coat:

• Flour Mesh Size: Decreases (particles get coarser) from Face (e.g., 325) -> Intermediate/Backup (e.g., 200).

• Stucco Mesh Size: Decreases significantly from Face (e.g., 100) -> Intermediate (e.g., 50) -> Backup (e.g., 25).

• Slurry Viscosity: Generally decreases slightly from Face to Backup coats (measured via flow cups like Zahn #4). Face coat slurries have higher powder-to-liquid (P:L) ratios (e.g., 3.2 - 3.6 : 1 for zircon/silica sol) for a dense, smooth layer. Backup coats often have slightly lower P:L ratios (e.g., 2.8 - 3.2 : 1) for better penetration into the previous stucco layer and faster drying. Viscosity typically ranges from 20-35 seconds (Zahn #4), adjusted based on specific requirements and foundry conditions.

• Rationale: This progression optimizes surface finish, prevents penetration defects, builds strength efficiently, ensures adequate permeability, and manages drying times and costs.

III. Analysis of the Proposed Single-Material, Three-Layer Shell

Based on the established principles of shell structure and materials, the proposed approach – using only 300-mesh quartz flour/silica sol slurry and only 60-mesh quartz sand for three identical layers – is fundamentally flawed and unsuitable for casting aluminum parts, even small ones like slingshots. Here's a detailed breakdown of the reasons:

1. Inadequate Shell Thickness and Strength:

   • Three layers, especially using a relatively fine stucco like 60-mesh (~250 microns), result in a shell that is far too thin and weak.

   • The shell must withstand multiple stresses: handling during dewaxing, autoclaving (if used), handling to the furnace, thermal shock during preheating, and crucially, the hydrostatic pressure of the molten aluminum during pouring.

   • A thin shell is highly prone to cracking, distortion, or catastrophic failure ("run-out") during dewaxing, handling, or pouring. The risk of run-out, where molten metal bursts through a weak spot in the shell, is significant. This is dangerous and causes scrap and potential equipment damage.

   • Standard shells use coarser backup stucco (e.g., 16-30 mesh) specifically to build thickness and strength rapidly in the outer layers. Using only 60-mesh sand severely limits the achievable thickness and structural integrity per layer.

2. Complete Lack of Transition Layer - Guaranteed "Cucumber Spine" Defects:

   • Using the same 60-mesh stucco for every layer eliminates the crucial intermediate/transition layer function.

   • While the first layer slurry might adequately cover the wax, the subsequent layers involve applying stucco directly onto the previous stucco layer.

   • Applying a layer of 60-mesh stucco onto an underlying layer of identical 60-mesh stucco means the new stucco particles are trying to embed themselves into gaps between particles of the same size. This results in poor interlocking and a inherently weaker bond between layers compared to a graded structure.

   • More critically, the angular nature of quartz sand means sharp points on the stucco particles of the second and third layers are pressed directly against the relatively thin, dried slurry film covering the first and second layers. This creates a high probability of puncturing through the underlying slurry layers, especially during stucco application (raindrop impact) or drying stresses. These punctures become direct paths for molten aluminum to penetrate during pouring, leading to severe sand burn ("cucumber spine") defects all over the casting surface. This defect is virtually guaranteed with this method.

3. Chemical Reactivity of Quartz with Molten Aluminum:

   • Quartz (crystalline SiO2) reacts chemically with molten aluminum (especially above ~700°C) to form aluminum oxide and silicon:
     4Al + 3SiO2 -> 2Al2O3 + 3Si

   • This reaction has several detrimental effects:

     • Surface Defects: It can cause pitting, roughness, or hard spots (inclusions of Al2O3 and/or free Si) on the casting surface, ruining finish and potentially causing machining issues.

     • Metal Contamination: Silicon dissolves into the aluminum melt, altering the alloy composition locally near the surface. This can affect mechanical properties and corrosion resistance.

     • Shell Degradation: The reaction consumes the quartz refractory, potentially weakening the face coat locally and contributing to metal penetration or erosion defects.

   • While less severe than with some alloys, this reaction is a significant risk when using silica-based refractories (powder and sand) directly against molten aluminum, particularly for the face coat. Industry best practice is to use inert refractories like Zircon or Alumina for the aluminum-contacting face coat to prevent this reaction. Using quartz for all layers, including the face, maximizes this risk.

4. Poor High-Temperature Strength of Quartz Shells:

   • Quartz undergoes significant and disruptive crystalline phase transformations upon heating:

     • α-Quartz (room temp) -> β-Quartz (@ 573°C) – ~0.8% volume expansion.

     • β-Quartz -> β-Tridymite (@ 870°C) – Further expansion.

     • β-Tridymite -> β-Cristobalite (@ 1470°C) – Significant expansion (~14%).

   • These phase changes, particularly the rapid α->β quartz inversion at 573°C, cause substantial internal stresses within the quartz particles and the surrounding matrix. This drastically reduces the hot strength and thermal shock resistance of the shell at critical temperatures encountered during preheating and metal pouring.

   • Combined with the thinness and inherent weakness of only three identical layers, the shell is highly susceptible to cracking, distortion, or even crumbling during the preheating stage ("firing"). The statement "it might enter the furnace but likely won't come out intact" is apt. A shell suffering high-temperature failure in the furnace is a major loss (wasted wax, shell labor, furnace time/energy).

5. Insufficient Permeability:

   • Using relatively fine 60-mesh sand throughout creates a shell with lower permeability than one incorporating coarse backup layers.

   • While less critical for small aluminum parts than for large steel castings, adequate permeability is still needed for:

     • Complete wax removal (dewaxing) without shell cracks from trapped steam pressure.

     • Escape of gases (air, binder decomposition products) from the mold cavity during pouring to prevent gas porosity in the casting.

   • A uniformly fine shell increases the risk of dewaxing cracks or gas-related casting defects.

Conclusion on Shell Feasibility: The proposed single-material, three-layer shell construction is not viable for investment casting of aluminum slingshot parts. It fails structurally (too thin, weak, prone to penetration defects), chemically (reactive with aluminum), thermally (poor high-temperature strength), and functionally (inadequate permeability). It embodies several fundamental violations of sound shell engineering principles.

IV. Beyond Shell Design: The Critical Role of Process Execution

While the proposed shell design is fundamentally flawed, achieving success even with a well-designed shell hinges critically on meticulous process execution. Shell building is where engineering design meets practical craftsmanship. The engineer must design a process that is practically achievable by the operators with consistent quality. Key operational considerations include:

1. Slurry Formulation & Control:

   • Powder-to-Liquid (P:L) Ratio & Viscosity: These must be carefully specified and tightly controlled for each layer type (Face, Intermediate, Backup). Viscosity (typically measured with a Zahn #4 cup) affects coating thickness, bubble release, and stucco embedment.

   • Adjusting for Part Geometry: For parts with deep recesses or blind holes (like the described deep, non-through hole), slurry viscosity often needs to be reduced across all layers compared to standard values. Thicker, higher-viscosity slurry cannot adequately flow into and coat deep features before draining, leading to thin spots or voids. For aluminum shells, slightly lower viscosities than for steel are often acceptable. Example target: ~25 seconds (Zahn #4) for face coat instead of 28-30s. Crucially, this viscosity must be determined experimentally based on the specific slurry materials, binder, and foundry drying conditions.

   • Slurry Maintenance: Continuous monitoring and adjustment (via binder additions) are needed to maintain viscosity as powder is consumed. Slurry aging must be managed.

2. Coating and Stuccoing Technique:

   • Dip Time: Ensuring the wax assembly is fully immersed for sufficient time to allow slurry penetration, especially into deep features.

   • Drainage ("Drip-Off" or "Control") Time: This is critical for achieving a uniform coating thickness. For parts with deep recesses, drainage time must be increased to allow excess slurry to flow out slowly. However, prolonged drainage time risks the slurry drying too much on the surface before stuccoing, preventing proper stucco embedment ("dry stuccoing"). This is why reducing viscosity is essential for complex parts – it allows adequate drainage without excessive drying time. Operators must be trained to drain parts efficiently but thoroughly.

   • Stucco Application: Must be timely (immediately after draining, while slurry is still wet/tacky), uniform, and of sufficient coverage. Techniques like rain sander or sanding booth must be well-controlled. For deep holes, ensuring stucco penetrates adequately can be challenging; sometimes manual assistance is needed.

3. Drying: The Foundation of Shell Integrity

   • Layer-by-Layer Drying: Each layer must be thoroughly dried before applying the next. Insufficient drying leads to delamination, cracks, or blisters during dewaxing or firing. Drying is not just water removal; it involves silica sol gelling to form the ceramic bond.

   • Environmental Control: Temperature and Humidity are paramount, especially for the face coat.

     • Face Coat Drying: Requires Low Temperature (e.g., 20-25°C) and High Relative Humidity (e.g., 60-80%). Why?

       • Synchronous Drying: Prevents the outer surface from drying (skinning over) much faster than the inner areas near the wax. Rapid surface drying traps moisture underneath, leading to defects like "eggshelling" (soft interior) or cracks during subsequent drying or dewaxing. Low Temp/High RH allows moisture to migrate outwards slowly and evenly as the gel network forms.

       • Prevents Crazing/Cracking: Reduces drying stresses.

     • Subsequent Layers: Can often tolerate slightly higher temperatures and lower humidity (e.g., 25-28°C, 40-60% RH) as the shell becomes more open and permeable. However, control is still necessary.

   • Drying Time Assessment: This is complex and depends on layer type, thickness, shell permeability, temperature, humidity, and airflow. There is no single fixed time.

     • Operator Checks: Experienced operators use tactile and visual checks:

       • Surface Hardness: Gently scratching or tapping the surface. Undried shell feels soft/mushy; dried shell feels hard/ceramic-like.

       • Color Change: Dried slurry often appears lighter (e.g., whitish/grey for silica-based) compared to the darker wet state.

       • Sound: A light tap on a dried shell sounds different (more "hollow" or "ringing") than on a wet one.

     • Instrumentation: Moisture probes (destructive) or weight loss monitoring can be used, but operator skill remains crucial, especially for checking internal surfaces of deep features.

   • Drying Deep Recesses/Blind Holes: This is a major challenge. Standard drying room air circulation is often insufficient.

     • Forced Air Assistance: Directing gentle, controlled streams of conditioned air (correct Temp/RH!) specifically into deep holes or cavities is often necessary ("directional drying").

     • Desiccant Drying: Placing desiccant materials (like silica gel) carefully within deep cavities after the surface has set can help draw moisture out internally. Requires careful implementation.

     • Extended Drying Times: Deep features inevitably take longer to dry than external surfaces. The example of a complex shell taking two weeks to dry highlights the issue. While potentially excessive, it underscores the need for dedicated solutions like forced air. "Where there's a will, there's a way" – innovative drying methods must be developed for complex geometries.

   • Drying Time Optimization: Foundries strive to minimize drying times without compromising quality. Optimizing slurry viscosity, stucco type/grading, drying environment parameters, and using forced air are key strategies. The two-week example suggests significant room for process improvement through engineering focus.

4. Process Monitoring and Quality Control (QC):

   • Layer Thickness: Operators and QC should have a concept of expected thickness for each layer type (e.g., Face coat: 0.2-0.3mm after stucco; Backup: 0.5-1.0mm). Measuring thickness (e.g., with calipers on a flat witness area or specific test patterns) periodically ensures the process is under control.

   • Visual Inspection: Checking each layer after drying for uniformity, stucco coverage, cracks, blisters, or soft spots before proceeding.

   • Drying Verification: As mentioned, critical before the next dip.

   • Documentation: Recording slurry parameters, drying times/temps/RH, and any observations is vital for traceability and troubleshooting.

V. Addressing Complex Features: Deep Holes

The specific challenge mentioned is a deep, non-through hole ("blind hole"). This presents significant difficulties for both coating and drying:

• Coating: Getting slurry to completely coat the deep internal surfaces without trapping air bubbles is hard. Lower viscosity helps. Drainage must be slow and controlled to avoid leaving thick slugs of slurry at the bottom. Stucco penetration to the bottom is difficult.

• Drying: As discussed extensively, drying the interior surfaces of a deep blind hole is the biggest hurdle. Standard ambient drying is ineffective. Forced air directed into the hole is almost mandatory. Desiccants offer a supplementary aid.

Core Solution: Ceramic Cores
For extremely deep or complex internal passages that are impossible or highly unreliable to produce via the shell build-up process itself, the definitive solution is to use a pre-formed ceramic core. This core is made separately (injected and sintered), inserted into the wax pattern during assembly, and becomes an integral part of the mold cavity. After casting, the core is dissolved out chemically.

• Advantages: Solves the coating/drying problem completely for the internal passage. Allows casting of geometries impossible otherwise. Improves dimensional accuracy of the internal feature.

• Disadvantages: Significant added cost (core design, tooling, manufacturing, handling, leaching). Adds complexity to wax assembly. Leaching process adds time and chemical handling.

The Cost-Benefit Dilemma:
Foundries often face the choice: Struggle with complex shell building for internal features (incurring higher shell scrap rates, potential casting leaks/scrap, longer cycle times, labor for special drying) OR invest in ceramic cores. Management must analyze:

• Option 1 (Shell Build): Avoids core cost but risks high shell/casting scrap, slower throughput, and potential reliability issues. Scrap costs and lost capacity can be substantial.

• Option 2 (Ceramic Core): High upfront/core piece cost, but enables reliable production, potentially faster shell building (fewer layers/special steps?), lower scrap rates, and better feature quality.

  • "Which carries more weight, only the foundry itself can determine." Persisting with a high-scrap shell approach without valid technical justification (as hinted in the anecdote about the "inexplicably adamant" process engineer) is poor practice. A rigorous cost-of-quality analysis usually reveals the core is cheaper overall for truly complex internal features.

VI. Additional Foundational Considerations

1. Wax Pattern Assembly (Treeing):

   • Dewaxing Pathways: The design of the wax assembly (gating system, runners, sprues) must incorporate clear and adequate pathways for melted wax to escape rapidly during dewaxing (steam autoclave or flash dewax). Blocked pathways cause high internal steam pressure, cracking the shell. The mention of a missing "wax escape port" in a problem area is a classic design error leading to shell failure. Every cavity needs a route out for the wax.

2. Drying Time Revisited:

   • The question "How long does the shell need to dry?" has no universal answer. As emphasized, it depends entirely on:

     • Shell materials and layer structure

     • Layer thickness

     • Part geometry (especially depth/complexity)

     • Drying environment parameters (Temp, RH, Airflow)

     • Use of drying aids (forced air, desiccants)

   • While a complex 5.5-layer shell taking two weeks is possible, it highlights a process needing optimization. Efficient drying requires engineering solutions tailored to the specific shell and part. Foundries should actively work to reduce drying times through parameter optimization, airflow design, and potentially slurry modifications, while ensuring quality.

VII. Conclusion

The proposal to use a uniform three-layer shell built solely with 300-mesh quartz flour slurry and 60-mesh quartz sand is technically unsound and unsuitable for investment casting aluminum parts. It violates core principles of shell design regarding layer function, material selection, structural strength, and chemical compatibility. Such a shell would likely fail during drying, firing, or pouring, and produce defective castings if it survived until metal pour.

Successful investment casting requires:

1. A properly designed shell structure with distinct face, intermediate, and backup layers using appropriate, progressively coarser refractories.

2. Correct material selection, especially using non-reactive refractories (like Zircon) for the aluminum-contacting face coat.

3. Meticulous process execution, particularly in slurry control, coating/stuccoing technique, and crucially, controlled drying (especially critical Low-Temp/High-Humidity for the face coat and specialized methods for deep features).

4. Rigorous quality control throughout the shell build process.

5. Design for Manufacturability (DFM) in both the part/wax pattern (considering dewaxing) and the shell building process itself.

For complex internal features like deep blind holes, the use of ceramic cores, despite their cost, often proves to be the most reliable and ultimately cost-effective solution compared to the high scrap rates associated with attempting to build the feature solely within the shell. Process engineers must balance technical feasibility, cost, quality, and reliability when making these decisions.
