Ceramic Grinding: How Surface Microtopography Influences Fracture Strength & Performance

The Effect of the Microstructure of Ceramic Ground Surfaces on Fracture Strength

Fracture strength, as a core indicator for evaluating the mechanical properties of ceramic materials, directly determines their reliability and durability in engineering applications. In the precision machining of advanced ceramics, grinding, as one of the primary methods for refining material surfaces, generates surface microtopography features (such as surface roughness, subsurface damage layers, microcrack distribution, etc.) that significantly affect the material’s fracture toughness and impact resistance.

I. Formation Mechanism of Ground Ceramic Surfaces
The formation of the microtopography on ground ceramic surfaces is a complex process involving the interaction between the material, grinding tools, and process parameters. During grinding, abrasive grains undergo intense friction and extrusion with the ceramic surface, leading to local plastic deformation, fracture, and material removal, ultimately forming specific microscopic features. This process involves several core mechanisms:

First, when abrasive grains contact the workpiece, the cutting forces and frictional heat generated by the rotation of the grinding wheel cause shear yield and brittle fracture in the surface layer of the material. The geometric characteristics of the abrasive grains (such as sharpness and size distribution) directly influence the depth of cut and contact area of the cutting edges, thereby determining material removal efficiency and the extent of surface damage. For example, French Saint-Gobain alumina grains achieve self-sharpening through micro-fractures at the tips, whereas domestic alumina grains experience increased cutting-edge wear due to larger fractures. This difference directly affects surface roughness and crack distribution characteristics.

Grinding parameters significantly influence the formation of microtopography. Grinding speed determines the relative sliding rate between the material and abrasive grains. High-speed grinding enhances thermo-mechanical coupling effects, leading to more severe surface thermal damage and residual stresses. Studies have shown that silicon carbide ceramics are prone to deep crack propagation under high-speed grinding, which is closely related to the distribution of the grinding temperature field and the material’s brittleness. Feed rate controls the thickness of the single-cut layer; excessive feed increases the load on abrasive grains, exacerbating surface plastic deformation and waviness. Additionally, the synergistic effect of grinding depth and wheel speed further influences the material removal mode. For instance, in flexible shape-adaptive grinding, the contact state between the elastic tool and the workpiece causes the actual penetration depth of single grains to deviate from the preset value. This dynamic change significantly alters the continuity of material removal and surface integrity.

The inherent microstructural characteristics of the material play a decisive role in the formation of surface topography. For example, in some specialty ceramics, the incorporation of reinforcements results in stronger bonding, leading to higher subsurface residual stresses and grinding temperatures during grinding, thereby exacerbating surface crack initiation. In multiphase composite ceramics, differences in grain boundary structure and bonding strength cause the material to exhibit uneven fracture behavior during grinding, resulting in local microcracks and fractal features. Fractal theory-based analysis shows that during rotary ultrasonic grinding of silicon nitride ceramics, the fractal dimension of the surface topography can reflect the randomness of material removal and the mode of damage propagation.

Optimization of wheel structure and abrasive layout is crucial for suppressing surface defects. Porous diamond wheels improve abrasive self-sharpening through their pore structure. Discrete element simulation results indicate that rational design of pore parameters (such as pore size and distribution density) can significantly reduce grinding force fluctuations and minimize material delamination and surface scratch depth. Furthermore, ultrasonic-assisted grinding introduces a micro-impact cutting effect through vibration, enabling abrasive grains to remove material in a discontinuous impact manner, thereby reducing heat accumulation and the extent of the plastic deformation zone typical of conventional grinding. This method results in lower surface roughness values, but attention must be paid to balancing the amplitude and frequency of ultrasound to control scratch density.

Microtopography features such as roughness, waviness, and crack distribution ultimately affect the fracture strength of ceramics through stress concentration effects. Surface microcracks, as initial defects, are prone to rapid propagation under external loads, while stress gradients formed by rough peaks and valleys accelerate interface debonding and shear failure.

II. Characteristic Parameters of Microtopography
The characteristic parameters of the microtopography of ground ceramic surfaces are core indicators for characterizing their geometric features and physical properties, mainly encompassing roughness parameters and texture parameters.

Roughness parameters reflect the microscopic geometric features of the ground surface by quantifying the unevenness of the surface profile. The most commonly used parameters are the arithmetic mean deviation (Ra) and the maximum height of the profile (Rz). The Ra value is derived from the average absolute value of the height of each point on the surface profile, providing a comprehensive representation of the overall characteristics of surface micro-fluctuations. The Rz parameter directly characterizes the maximum unevenness in local areas of the surface by measuring the vertical distance between the highest peak and the lowest valley in the profile. These parameters can be accurately obtained using surface topography measuring instruments, such as white light interferometers or scanning electron microscopes, providing a quantitative basis for analyzing the relationship between surface integrity and fracture strength.

Texture parameters focus on describing the directional distribution characteristics of surface topography, including texture direction, texture spacing, and orientation angle. The motion trajectory of abrasive grains and the material removal method during grinding significantly influence texture characteristics. For example, in quick-point grinding, the instantaneous contact characteristics between abrasive grains and the workpiece result in the formation of texture grooves in specific directions on the surface. Their directionality and spacing directly affect the stress distribution and fracture propagation path of the material. Additionally, the directionality of surface texture is closely related to processing parameters, such as wheel speed and feed rate. The lubricating properties of grinding fluids (e.g., MoS₂-WS₂ hybrid nanofluids) can reduce the randomness of surface texture by improving the uniformity of abrasive motion trajectories. Studies have shown that the smaller the angle between the surface texture direction and the direction of external loading, the weaker the material’s fracture resistance, which is closely related to the preferential propagation of surface microcracks along texture grooves.

In grinding, the formation of surface characteristic parameters is closely related to the processing technology. For example, ultrasonic vibration grinding improves the uniformity of abrasive cutting trajectories by introducing high-frequency vibrations, effectively reducing surface roughness values and optimizing texture direction distribution. Diamond wheels prepared by brazing and electroplating processes exhibit significant differences in surface roughness and texture characteristics due to variations in abrasive protrusion height and mesh size. Experiments have shown that when using brazed wheels, grinding forces and surface roughness values are generally higher than those with electroplated wheels, and texture spacing is more irregular. Additionally, material phase transformations and the depth of the affected layer caused by high temperatures in the grinding zone also influence roughness parameters. For example, the high temperatures generated in conventional grinding result in a thicker affected layer on the surface of ZrO₂ ceramics, leading to a significant increase in Rz values. The introduction of nanofluids can effectively reduce the depth of the chip layer and improve surface integrity.

Comprehensive analysis of surface microtopography characteristic parameters requires a combination of multi-scale measurement and modeling techniques. Studies have shown that a single roughness parameter is insufficient to fully reflect surface performance; multi-dimensional evaluation incorporating texture parameters and the depth of the affected layer is necessary. For example, although a reduction in surface roughness Ra can improve fracture resistance, if accompanied by disordered texture direction, it may weaken the material’s shear resistance.

III. Relationship Between Microtopography and Performance
The microtopography of ground ceramic surfaces, as a direct representation of the material’s surface and internal structure, significantly regulates the physical and mechanical properties of the material through its geometric features and organizational defects. Features such as roughness and scratches in the microtopography directly alter the stress distribution on the material surface, exacerbating local stress concentration effects. Research indicates that as surface roughness increases, the contact area decreases while contact pressure rises, significantly reducing the contact strength of the material and accelerating interfacial wear between friction pairs. Additionally, sharp edges formed by surface scratches are prone to cause stress distortion, further inducing microcrack initiation. This effect is particularly prominent in hard and brittle materials. For example, discontinuous regions at the interface become weak points under shear loads, leading to preferential brittle fracture in shear tests.

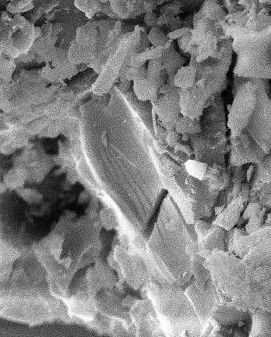

Internal defects in the microtopography, especially through-thickness cracks and microcracks in the subsurface layer, are key factors leading to the degradation of fracture strength in ceramic materials. The stress intensity factor at the crack tip is positively correlated with crack length. When external loads exceed a critical value, cracks rapidly propagate and ultimately cause fracture. Variations in grain size and volume fraction within the material significantly affect the distribution of interphase internal stresses, and the accumulation of internal stress is a major cause of microcrack nucleation. Similarly, the thermomechanical effects generated during ceramic grinding can alter the interfacial bonding strength of composite materials through interfacial element diffusion and the formation of intermetallic compounds (IMCs), thereby influencing crack propagation paths. The growth of IMCs at the interface forms discontinuous regions, and this inhomogeneity in interfacial structure reduces the shear resistance of the bonding interface, ultimately leading to a decrease in the material’s fracture strength.

The relationship between crack propagation behavior and microtopography features is also reflected in the regulation of crack initiation locations and propagation paths. When periodic波纹 or machining textures are present on the ground surface, cracks tend to propagate preferentially along the texture grooves. This directional propagation characteristic significantly reduces the material’s fracture toughness. Research on the deformation mechanism of duplex stainless steel shows that differences in the distribution of soft and hard phases in the microstructure create interphase stress fields. The high stress concentration tendency in hard phase regions exacerbates the stress intensity at crack tips, thereby accelerating unstable crack propagation. For ceramic materials, uneven distribution of residual stresses generated during grinding can also lead to hidden cracks in the subsurface layer. These defects may gradually propagate under alternating loads during subsequent use, ultimately causing sudden fracture.

Microtopography significantly influences the selection of material fracture modes. When surface defect density is low and the topography is relatively smooth, the material is more likely to exhibit ductile fracture characteristics, manifested as crack branching and fibration. In contrast, when numerous sharp defects are present on the surface, brittle fracture modes may be induced, characterized by rapid transgranular propagation along grain boundaries or phase boundaries. For example, research on the interfacial structure of a certain ceramic material under different sintering schemes shows that non-uniform phase distribution at the interface creates stress-oriented regions, causing the fracture path to preferentially select weak areas at the interface, significantly reducing the overall fracture strength of the material.

In summary, the microtopography of ground ceramic surfaces directly affects the stress distribution, crack propagation mechanisms, and fracture modes of the material through the dual effects of geometric features and internal defects. A deep understanding of the intrinsic relationship between microtopography and performance can provide a theoretical basis for optimizing grinding process parameters and controlling surface integrity, thereby effectively enhancing the fracture strength of ceramic materials.
