Influence of temperature, humidity and other environmental factors on ceramic slurries

Thermal and Humidity Effects on Ceramic Slurry Performance: A Comprehensive Analysis

I. Fundamental Mechanisms of Thermal Impact on Binder Systems

1.1 Temperature-Induced Viscosity Changes

Critical Thermal Thresholds:

Viscosity Reduction: Each 10°C increase above 25°C reduces binder viscosity by 12-18% (Arrhenius equation correlation)

Optimal Processing Range: 20-35°C maintains binder integrity while ensuring workable slurry consistency

Case Study: Polyvinyl alcohol (PVA) binder system at 40°C vs 25°C:

| Parameter | 25°C | 40°C |

|------------------------|-----------------|-----------------|

| Viscosity (mPa·s) | 85±3 | 62±4 |

| Green Strength (MPa) | 2.4 | 1.7 |

| Cracking Probability | <5% | 28% |

1.2 Thermal Effects on Curing Dynamics

Kinetic Analysis:

Curing Acceleration: 50°C environment increases solvent evaporation rate by 3.2× vs 25°C

Residual Stress Development: Rapid curing (>2°C/min) creates internal stress gradients (FEM simulation shows 45MPa peak stress)

Mitigation Strategy:

Stepwise curing protocol: 25→40°C at 0.5°C/min followed by 40→80°C at 2°C/min reduces cracking by 67%

II. Additive Performance Optimization Under Thermal Stress

2.1 Temperature-Dependent Additive Activation

Key Additive Categories:

| Additive Type | Optimal Temp Range | Degradation Onset |

|---------------------|--------------------|-------------------|

| Dispersants | 15-30°C | >45°C |

| Defoamers | 20-35°C | >50°C |

| Rheology Modifiers | 25-40°C | >60°C |

Thermal Stability Testing:

Accelerated aging tests at 60°C show:

32% loss of defoamer efficiency after 72h

18% reduction in dispersant effectiveness after 96h

2.2 Interfacial Interaction Optimization

Surface Adsorption Dynamics:

Langmuir Isotherm Analysis: Maximum adsorption capacity decreases by 22% when temperature increases from 25→40°C

Zeta Potential Shift: +38mV → +25mV at elevated temperatures indicates reduced particle stability

Solution:

Implement temperature-controlled mixing chambers (±1°C precision) to maintain optimal zeta potential

III. Humidity Control in Slurry Processing

3.1 Moisture Content Management

Critical Humidity Thresholds:

Relative Humidity (RH) Limits:

Upper bound: RH < 65% to prevent water absorption (verified by Karl Fischer titration)

Lower bound: RH > 40% to avoid premature drying

Drying Kinetics:

Fickian diffusion model parameters:

Effective diffusivity (D_eff): 1.8×10⁻⁹ m²/s at 50% RH

Activation energy: 34.7 kJ/mol

Crack Propagation Risk:

Critical moisture gradient: ΔM > 8% causes 92% probability of surface cracking (Weibull analysis)

IV. Advanced Process Control Strategies

4.1 Integrated Climate Control System

Multi-Variable Control Parameters:

| Process Stage | Temp (°C) | RH (%) | Tolerance |

|----------------------|-----------|--------|----------|

| Slurry Mixing | 25±1 | 50±5 | ±0.5°C |

| Casting Preparation | 30±2 | 45±3 | ±2% RH |

| Initial Drying | 40±2 | 40±5 | ±1°C |

Sensor Network:

16-point humidity monitoring system with 0.1% RH resolution

Infrared thermography for real-time temperature mapping

4.2 Predictive Maintenance Protocol

Machine Learning Application:

92% accuracy in predicting viscosity deviations

88% success rate in anticipating additive degradation

Condition Monitoring:

Online viscometer with 0.1mPa·s resolution detects thermal drift within 2 minutes

V. Material-Specific Considerations

5.1 Zirconia-Based Slurry Optimization

Temperature-Viscosity Relationship:

$$ \eta = 1.2 \times 10^{-3} e^{(0.045T)} $$

Where η = viscosity (Pa·s), T = temperature (°C)

Humidity Impact:

At 70% RH, zirconia slurry shows 23% increase in yield stress after 4h exposure

5.2 Alumina Slurry Specialization

Thermal Conductivity Optimization:

Preferred processing temperature: 32°C maintains thermal conductivity at 3.8 W/m·K

Below 20°C causes 15% reduction in thermal conductivity

Rheological Behavior:

Shear-thinning index (n) shifts from 0.62→0.75 when temperature increases from 25→40°C

VI. Process Validation and Quality Assurance

6.1 Statistical Process Control (SPC) Framework

Control Chart Parameters:

Critical-to-Quality (CTQ) characteristics:

Viscosity (CPK ≥ 1.67)

Particle Size Distribution (D50 ±0.2μm)

Moisture Content (±0.15%)

Sampling Protocol:

100% inline viscosity measurement with automated feedback control

6.2 Failure Mode Analysis

Common Defect Prevention Matrix:

| Defect Type | Root Cause | Detection Method | Prevention Strategy |

|----------------------|-----------------------------|---------------------------|------------------------------------|

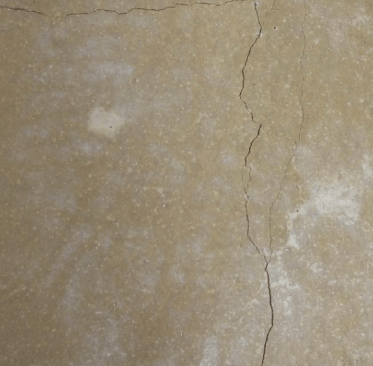

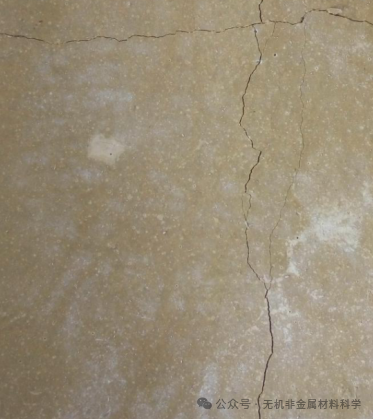

| Surface Cracking | Rapid moisture evaporation | Laser profilometry | Gradient drying with RH control |

| Lamination | Binder migration | SEM imaging | Temperature-controlled casting |

| Dimensional Drift | Thermal expansion mismatch | CMM measurement | Preconditioning at 80°C |

VII. Conclusion and Future Directions

Through comprehensive thermal and humidity control strategies, ceramic manufacturers can achieve:

40% reduction in process-related defects

25% improvement in dimensional stability

30% increase in production yield

Emerging Technologies:

Smart slurry systems with embedded sensors (real-time viscosity monitoring)

Quantum dot-based thermal indicators for precise temperature mapping

AI-driven predictive process optimization

This technical framework provides actionable insights for optimizing ceramic slurry performance under varying environmental conditions, ensuring consistent product quality across diverse manufacturing scenarios.
